Product Description
Type 94605/946H5/95605/956H5

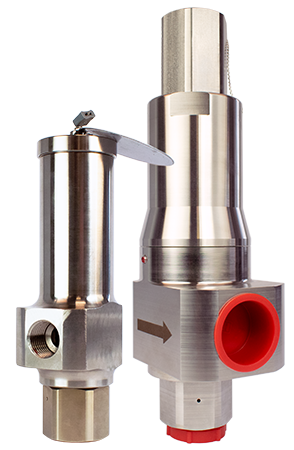

4.6mm Nominal Bore Enclosed Discharge Safety Relief Valve for Compressed Air & Gases – Including Hydrogen
Example Applications:
- Air/Gas Compression
- Air/Gas Boosters
- Natural Gas
- Pressure Vessels
- Hydrogen Production
- Hydrogen Storage
Key Features:
- Compact and space-saving design
- Designed and built for repeatable operation
- Advanced sealing technology with super-lapped hard-faced seat and disc, designed to offer robust high-performance sealing
- Orientable gas-tight packed lever option (9*6H5 only)
- Simple and robust design with three moving parts
- Maintenance-friendly design
- Designed with Hydrogen embrittlement resistant materials (H2 option)**For Hydrogen applications above 515 bar, a ceramic disc is required, use type 956H5**
Technical Information
Technical Information for Type 94605 / 946H5 / 95605 / 956H5
-
Min. Pressure35.00 bar (507.50 psi)
-
Max. Pressure1100.00 bar (15950.00 psi)
-
Temperature Range-196°C to 300°C (subject to seal material)
-
Flow Area16.61 mm² (4.6 mm inlet bore diameter)
-
Inlet Connection(s)BSPP, BSPT, NPT or Cone & Thread
-
Outlet Connection(s)BSPP or NPT
-
Flow RateRefer to Flow Tables on the datasheet
-
MaterialsSt. Steel
-
Seal MaterialsMetal or ceramic disc seal
-
Test CertificationIncluded - supplied Free of charge
Flow Rates:
- See Datasheet
Materials:
- Stainless Steel construction with metal or ceramic disc seal
Notes:
- The maximum permissible built-up back pressure is 10% of the set pressure
- Relieving pressure is set pressure +10%
- For Hydrogen applications above 515 bar, a ceramic disc is required, use type 956H5**
Inlet connection options:
- BSP (male) max 515 bar
- BSPT (male) max 515 bar
- NPT (male) max 1034 bar
- Cone & Thread (female) max 1100 bar
Approvals:
- BS EN ISO 4126-1
- PED 2014/68/EU
- Module B – TÜV Rheinland
- Module D – LRQA Deutschland
- PE(S)R 2016 (UKCA)
- Module B – TÜV UK
- Module D – LRQA UK
- Seat tightness better than API 527
